What is Pan-Tilt-Zoom (PTZ)?

Published
January 17, 2024
PTZ Camera

PTZ is an abbreviation for Pan-Tilt-Zoom. PTZ cameras can pan, tilt and zoom.

  • To pan means rotating horizontally while maintaining a fixed position. The pan motion is similar to the motion of moving the head left or right.
  • To tilt means rotating vertically up and down while maintaining a fixed position.

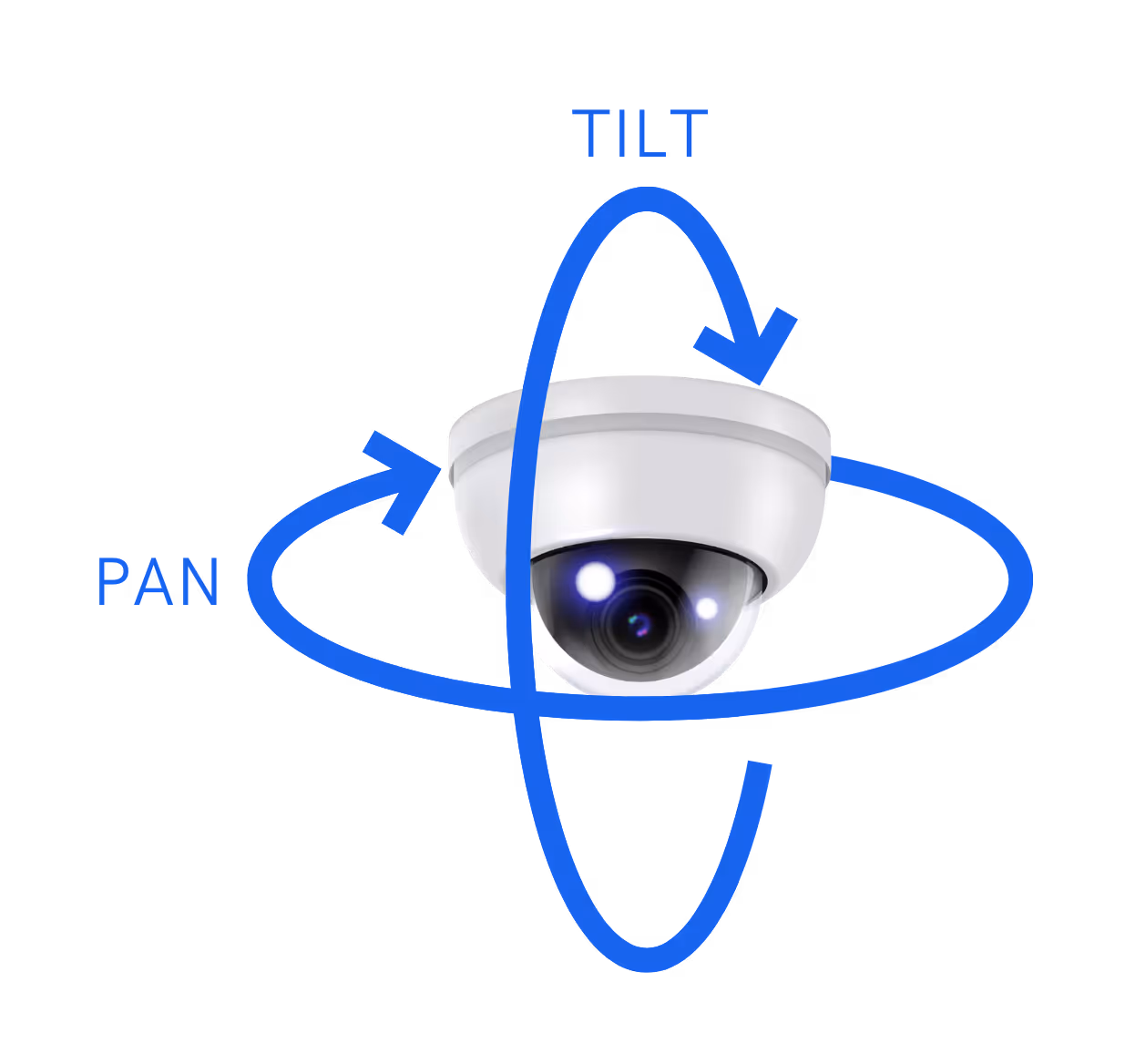

The below image illustrates Pan and Tilt movements for a dome security camera.

Pan and Tilt
Pan and Tilt movement for a dome security camera

Zooming refers to the ability to magnify the image captured by the camera lens in order to get a closer look at a particular area or object. This can be achieved using either optical zoom or digital zoom.

Optical zoom uses the camera's lens to physically adjust the focal length and bring the subject closer without losing image quality. Digital zoom, on the other hand, simply enlarges the image electronically, which can lead to a loss of image quality and detail.

Use Cases of PTZ Cameras

PTZ cameras are commonly used in security applications because of their ability to provide greater coverage and more detailed monitoring of a space. The pan-tilt-zoom capabilities of these cameras allow security personnel to remotely control and adjust the camera's position, angle, and zoom level, giving them greater situational awareness and the ability to respond quickly to potential security threats.

Some key reasons why PTZ cameras are used in security applications are:

  1. Wider coverage: PTZ cameras can be remotely controlled to cover a wider area than fixed cameras, allowing for more comprehensive surveillance of a space.
  2. Zoom capabilities: PTZ cameras can zoom in on specific areas of interest, such as a person's face or a license plate number, providing greater detail and allowing for better identification of potential suspects.
  3. Remote control: PTZ cameras can be remotely controlled by security personnel, allowing them to adjust the camera's position and focus in real-time to respond to potential security threats.
  4. Preset positions: PTZ cameras can be programmed with preset positions, which can be quickly accessed by security personnel to focus on specific areas of interest.

In combination with Video Analytics, PTZ cameras can be used to pan, tilt and zoom automatically to follow objects of interest such as intruders.

Overall, PTZ cameras provide a high level of flexibility and control in security applications, making them a valuable tool for monitoring and responding to potential security threats.
